B Series

Introducing our latest HeatMasterss furnaces that will revolutionize the way you heat your home.With a number of key features, this is the best alternative heating method in the industry.Through meticulous research and stringent quality control procedures, we consistently hold the highest efficiency rating in the industry.

Two Reasons to Choose a Gasification Boiler

Image alt

You have access to seasoned wood

Gasification boilers require dry seasoned wood in order to efficiently utilize the gasification process. If you have time to split and season your wood before the heating season, you can benefit from the efficiency of our G series boiler.
Image alt

You value efficiency

Gasification boilers can use 30% to 50% less wood than a conventional style wood boiler. If you want to save time collecting, splitting, and loading wood, our G series boiler is right for you.

How Gasification Works in YourHeatMaster Boiler

Maximize Your Fuel: Airflow to the top and bottom burn chambers is controlled independently with dual modulating dampers. An oxygen sensor optimizes the flow of air into the Tornado Combustion Chamber resulting in the cleanest and most efficient burn available.

Complete Combustion: Complete combustion is achieved as the oxygen and wood gasses swirl in tight spirals within the Tornado Combustion Chamber. Peak temperatures are maintained thanks to the mass of the refractory, and the chamber’s double pass allows enough time to burn all available fuel.

High-Efficiency Heat Exchange Tubes: Heat exchange tubes with spiral turbulators transfer the maximum amount of heat to your water jacket, ensuring every available BTU can be used.

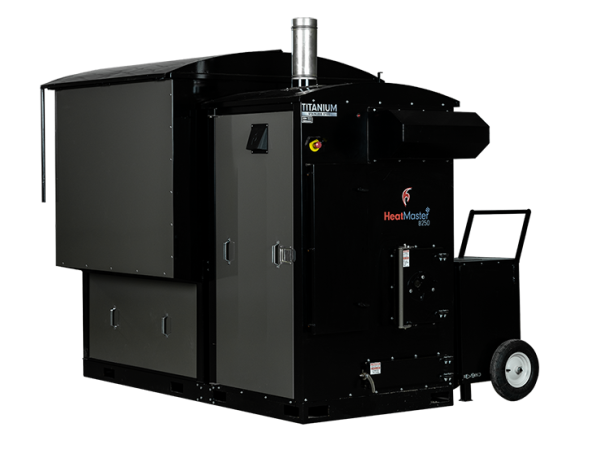

The B250 is the perfect solution for individuals and small businesses with medium to large heating applications seeking to save time and money while achieving energy independence. It provides users with a wide range of high efficiency heating solutions. In an easy to use, safe and durable unit.

BTU Output 200,000 – 250,000 BTU/hr
Water Capacity (US Gallons) 145 gallons
Fuel Storage 112.5 Cubic Feet
Outlets 1-1” Pair and 1-1½” Pair NPT
Weight 3,108 lbs
Outlets 1 set of 1” and 1 set 1.5u0022
Chimney Size 6” Double Wall Insulated
Power Requirements 125/250V, 1 Phase, 60Hz, 19 Amp
Max Breaker Size 30 Amp
Request For Quote

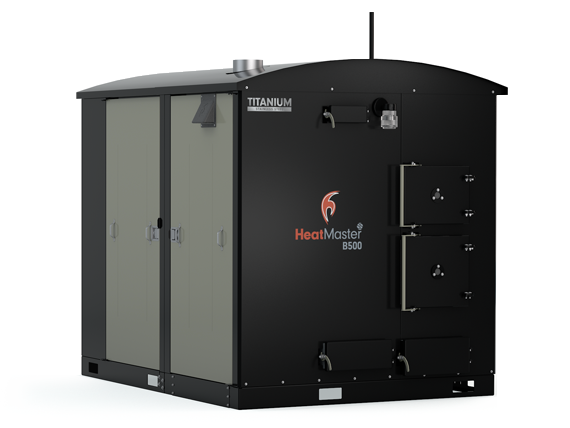

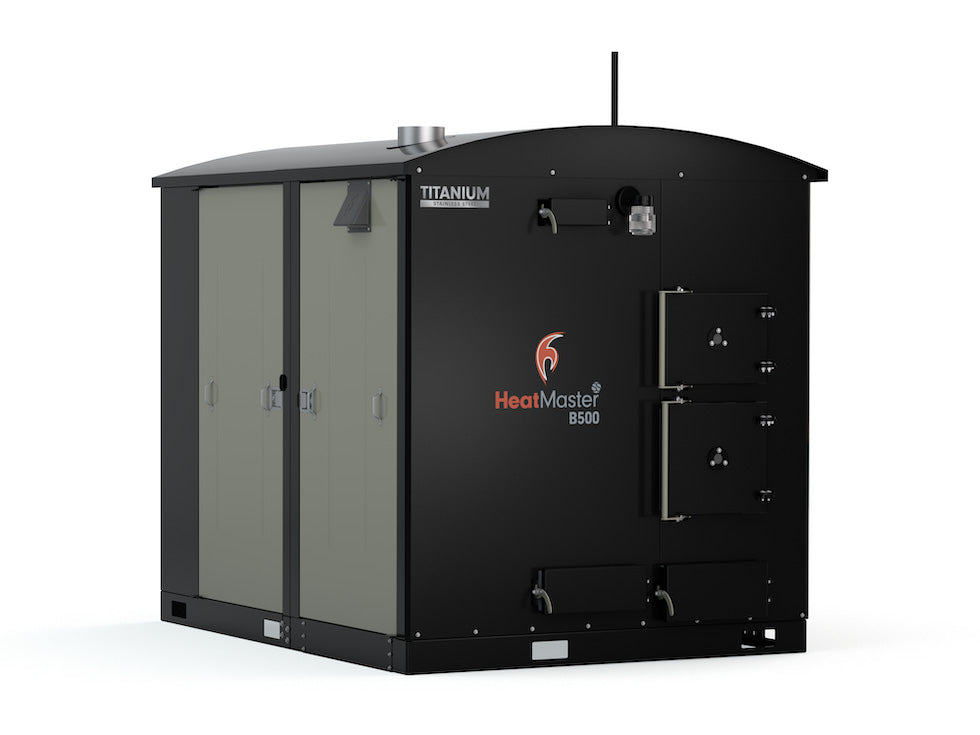

The B Series Multi-Fuel Biomass furnace provides unlimited heat and hot water for large spaces and multiple applications. It can burn wood chips, wood pellets, ag screenings or coal and is a great way to save money if you’re heating a large area.

BTU Output 400,000 to 500,000 BTU/hr
Water Capacity (US Gallons) 312 gallons
Fuel Storage 200 – 3000 Cubic Feet
Outlets 2 Return, 2 Supply, 2” Outlets
Power Requirements 125/250V, 1 Phase, 60Hz, 31 Amp
Weight 4,056 lbs
Outlets 1 sets of 1” and 1 set 1.5u0022
Chimney Size 8” Double Wall Insulated
Max Breaker Size 40 Amp
Request For Quote

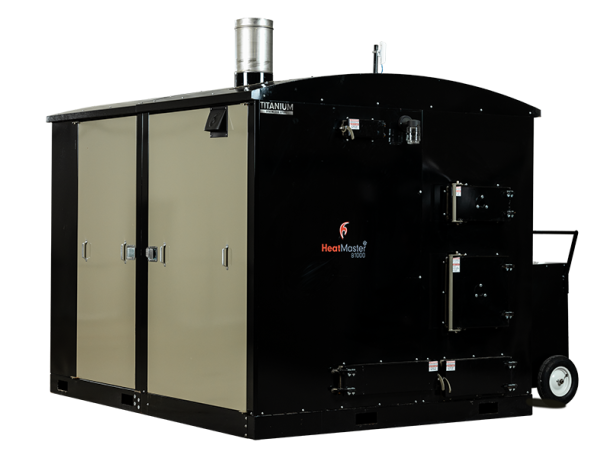

The B Series Multi-Fuel Biomass furnace provides unlimited heat and hot water for large spaces and multiple applications. It can burn wood chips, wood pellets, ag screenings or coal and is a great way to save money if you’re heating a large area.

BTU Output 1,000,000 BTU/hr
Water Capacity (US Gallons) 597 gallons
Fuel Storage 200 – 3000 Cubic Feet
Dimension with Insulated Housing 94”w x 94”h x 119”l
Weight 5,500 lbs
Chimney Size 10” Double Wall Insulated
Outlets 1-2” Pair and 1-3” Pair NPT
Power Requirements 125/250V, 1 Phase, 60Hz, 31 Amps
Max Breaker Size 40 Amp
Request For Quote
